Στήριγμα διαιρούμενο υδρορροών PVC Τύπος 113
- Περιγραφή
- Επισκόπηση Προϊόντος
Περιγραφή
General Information:
- two screw clamp, suitable for rain-drain square pipes
- with pre-fixed woodscrew pin to the body of the clamp
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 10mm.
- material: steel, pre-galvanized
Technical information:

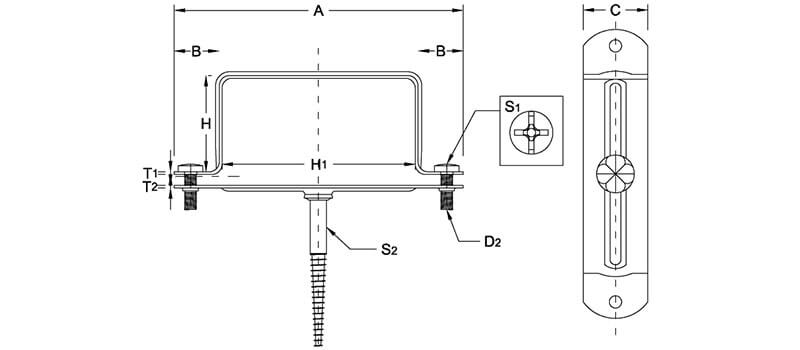

- side locking screws (D2) 3/16x10mm, head (S1) DIN 7985
- woodscrew pin (S2) 7x65mm fits in wall plug D10
- max. allowed load, (Ν) 1.030
- max. allowed load is calculated for static load only in (N) Newton, 1 (N) = 0,102 kg / 1 kg = 9,8 (N)
- packing includes PVC wall plugs D10
Article code | Diameter D | A | B | C | T1 | T2 | Pcs/bag | Pcs/box |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
113.3.126 | 6x100 | 150 | 17 | 22 | 1,00 | 1,50 | 2 | 100 |
