Γωνίες για απλές ράγες
Type: 530
General Information:
- ankles for rail connection
- easy to make rail fabrications
- suitable for model C rails 27×18, 30×15, 32×20 and 30×30
- material: steel, zinc plate. Upon request also available hot deep galvanized
- Περιγραφή
- Επισκόπηση Προϊόντος
Περιγραφή
General Information:
- ankles for rail connection
- easy to make rail fabrications
- suitable for model C rails 27×18, 30×15, 32×20 and 30×30
- material: steel, zinc plate. Upon request also available hot deep galvanized

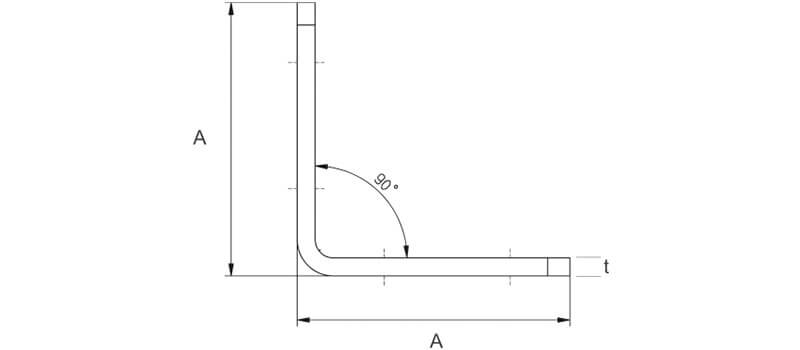

Technical information:
- available on 90° and 135°
- standard dimension 60x60mm with 25mm width
- standard oval holes 30×8,5mm
- standard thickness 5mm
| Article code | Dimension AxA | a | t | Pcs/ bag | Pcs/ box |
| (mm) | (°) | (mm) | |||
| 674.3.900 | 60x60 | 90 | 5,00 | - | |
| 674.3.450 | 60x60 | 135 | 5,00 | - |
