Clamps type 112 (for steel pipes)

Clamps type 112 (for steel pipes)

Type: 200 General Information:

  • two screw clamp, suitable for medium duty steel pipes
  • with pre-fixed woodscrew pin to the body of the clamp
  • for horizontal and vertical pipe fixing
  • minimum distance between the wall and the pipe 10mm.
  • material: steel, zinc plated

  • Description
  • Product Overview

Description

General Information:

  • two screw clamp, suitable for medium duty steel pipes
  • with pre-fixed woodscrew pin to the body of the clamp
  • for horizontal and vertical pipe fixing
  • minimum distance between the wall and the pipe 10mm.
  • material: steel, zinc plated

Technical information:

  • side locking screws (D2) 3/16x10mm, head (S1) DIN 7985
  • woodscrew pin (S2) fits in wall plug D10
  • max. allowed load, (Ν) 1.030
  • max. allowed load is calculated for static load only in (N) Newton, 1 (N) = 0,102 kg / 1 kg = 9,8 (N)
  • packing includes PVC wall plugs D10

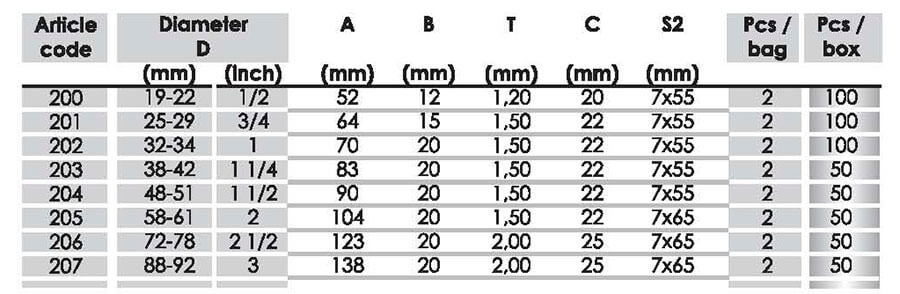

Steel pipe clamps (for single pipes) Type 200Steel pipe clamps (for single pipes) Type 200
