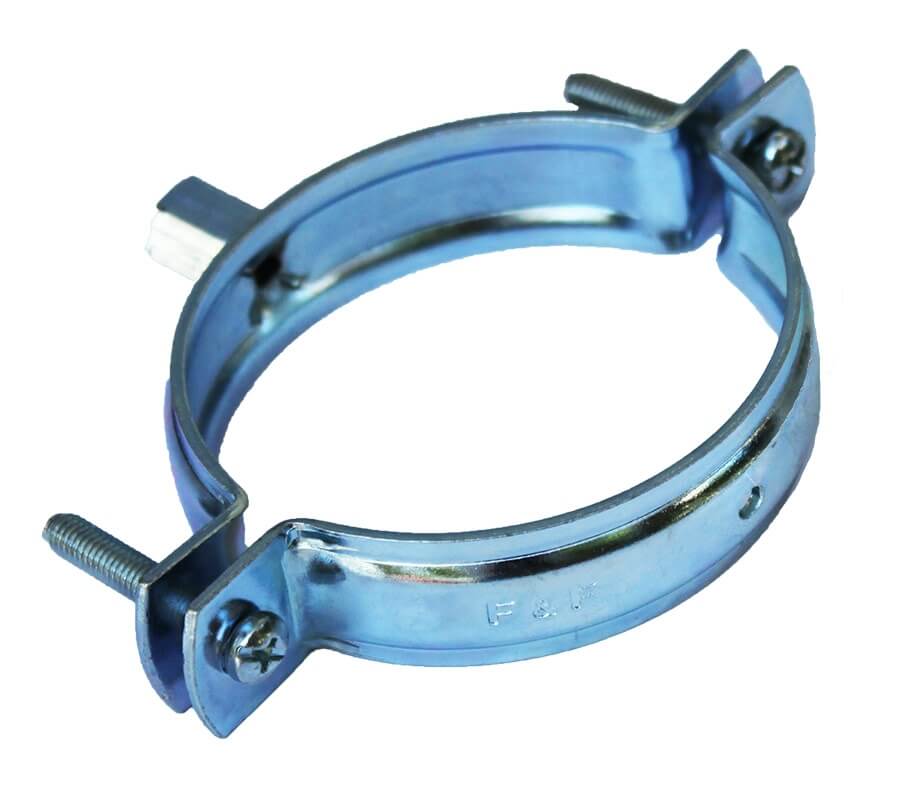

Clamps type 300 (for all type of pipes)
Type: 300 General Information:
- two screw clamp
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 17mm.
- material: steel, zinic plated
- Description
- Product Overview
Description
General Information:
- two screw clamp
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 17mm.
- material: steel, zinic plated

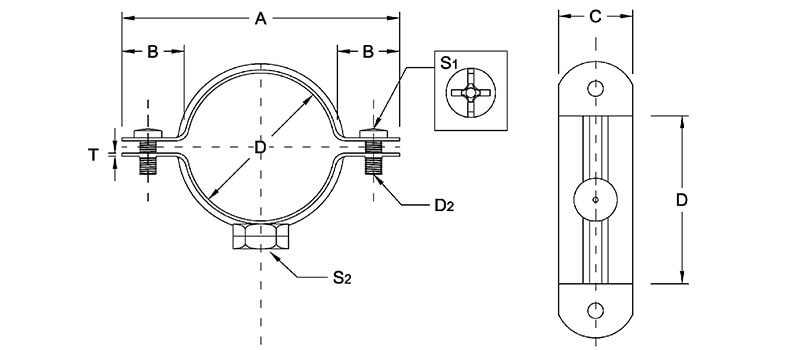

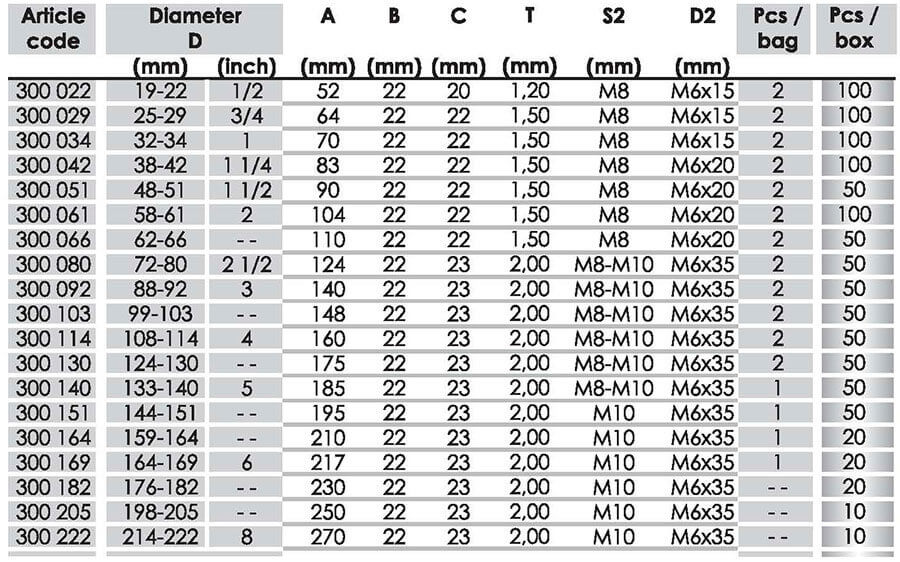

Technical information:
- side locking screws (S1) DIN 7985
- max. allowed load, from dimension 19-22 to 62-66 (N) 980, from 72-80 to 214-222 (N) 1.380
- max. allowed load is calculated for static load only in (N) Newton, 1 (N) = 0,102 kg / 1 kg = 9,8 (N)
