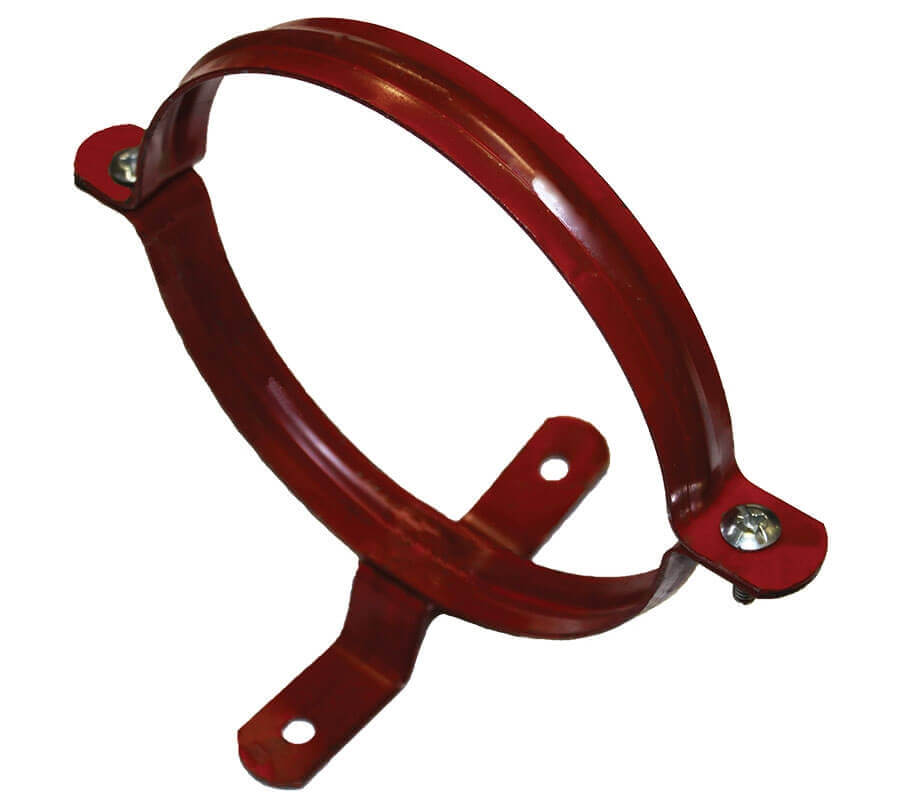

Clamps type 115 (for concrete chimney pipes)
Type: 260 General Information:
- two screw clamp, suitable for round concrete pipes
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 25mm.
- material: steel, pre-galvanized
- Description
- Product Overview
Description
General Information:
- two screw clamp, suitable for round concrete pipes
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 25mm.
- material: steel, pre-galvanized
Technical information:

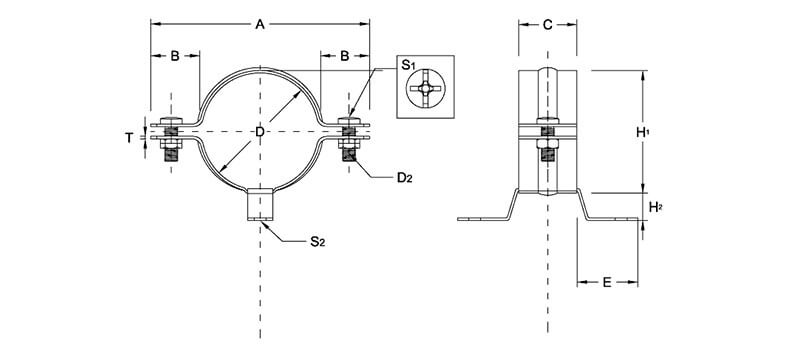

- side locking screws (D2) M6x25mm, head (S1) DIN 7985
- wall connecting hole (S2) 8,5mm
- max. allowed load, (Ν) 1.800
- max. allowed load is calculated for static load only in (N) Newton, 1 (N) = 0,102 kg / 1 kg = 9,8 (N)
