Clamps type 122 (for double steel pipes)
Type: 220 General Information:
- one screw clamp, suitable for medium duty steel pipes
- suitable for fixing two pipes at the same point with only one clamp
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 10mm.
- material: steel, pre-galvanized
-
Saddles type 114 (for all type of pipes)
Type: 10 General Information:
- one part saddle, suitable for small pipes
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 0mm.
- material: steel, pre-galvanized
-

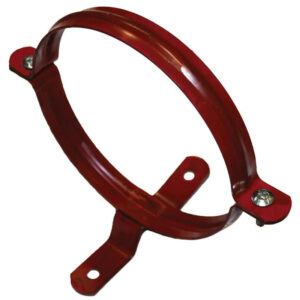

Clamps type 115 (for concrete chimney pipes)
Type: 260 General Information:
- two screw clamp, suitable for round concrete pipes
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 25mm.
- material: steel, pre-galvanized
-
Clamps type 115 (for square concrete chimney pipes)
Type: 265 General Information:
- two screw clamp, suitable for square concrete pipes
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 35mm.
- material: steel, pre-galvanized
-
Stainless steel clamps type 300.6 (for all type of pipes)
Type: 300ss General Information:
- two screw clamp
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 13mm.
- material: stainless steel AISI 316L (A4). Upon request also available stainless steel AISI 304 (A2)
-
Stainless steel heavy duty clamps type 402-6.6 (for all type of pipes)
Type: 310ss General Information:
- two screw clamp
- for horizontal and vertical pipe fixing
- CO2 welded nut. Upon request also available with a different size nut.
- material: stainless steel AISI 316L (A4). Upon request also available stainless steel AISI 304 (A2)
-
Stainless steel industrial clamps type 407.6 (for all type of pipes)
Type: 320ss General Information:
- two identical parts clamp
- for horizontal pipe fixing
- supplied always in pairs without screws and nuts
- material: stainless steel AISI 316L (A4). Upon request also available stainless steel AISI 304 (A2)
-
Clamps with rubber lining type 310.3 (for all type of pipes)
Type: 400 General Information:
- two screw clamp with rubber lining (EPDM)
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 17mm.
- material: steel, zinc plated
-
Heavy duty clamps with rubber lining type 412-5.3 (for all type of pipes)
Type: 410
General Information:
- two screw clamp with rubber lining (EPDM)
- for horizontal and vertical pipe fixing
- CO2 welded nut. Upon request also available with a different size nut or in 45° ankle to help installers with heavy pipes
- material: steel, zinc plated. Upon request also available hot deep galvanized.
-
Industrial clamps with rubber lining type 417.3 (for all type of pipes)
Type: 420 General Information:
- two identical parts clamp with rubber lining
- for horizontal pipe fixing
- supplied always in pairs without screws and nuts
- material: steel, zinc plated. Upon request also available hot deep galvanized
-
Stainless steel clamps with rubber lining type 311-2.6 (for all type of pipes)
Type: 400ss General Information:
- two screw clamp with rubber lining
- for horizontal and vertical pipe fixing
- minimum distance between the wall and the pipe 13mm.
- material: stainless steel AISI 316L (A4). Upon request also available stainless steel AISI 304 (A2)
-
Stainless steel heavy duty clamps with rubber lining type 402-6.6 (for all type of pipes)
Type: 410ss General Information:
- two screw clamp with rubber lining
- for horizontal and vertical pipe fixing
- CO2 welded nut. Upon request also available with a different size nut.
- material: stainless steel AISI 316L (A4). Upon request also available stainless steel AISI 304 (A2)
